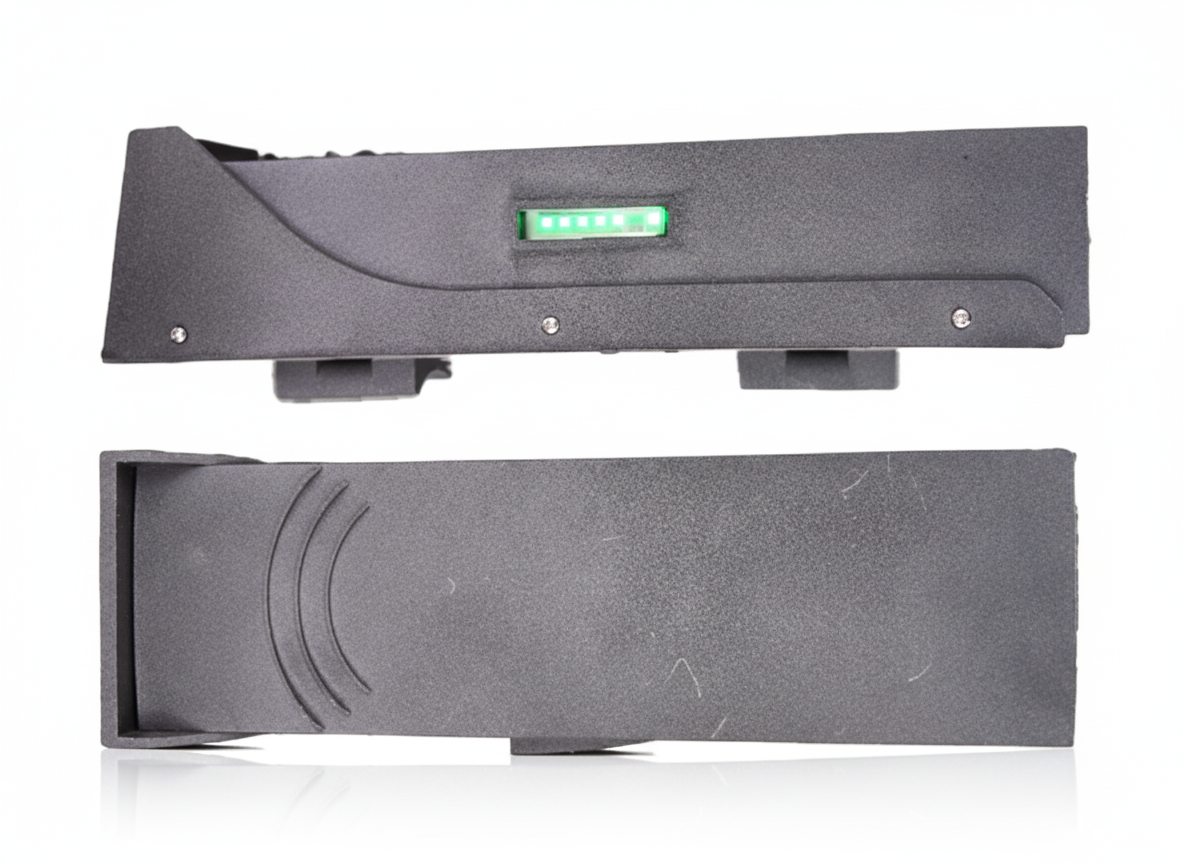

Point To Point RF Link

Software Specifications

Wireless working mode	Video recorder, camera
Network Settings	LAN port connection: static IP, dynamic IP
Wireless Setup	802.11a/n/ac mode Automatic channel selection Transmit power adjustment Wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, 64/128/152-bit WEP encryption SSID broadcast/hidden WDS Channel bandwidth selection Advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM
Management and maintenance	HTTP/HTTPS WEB Management System log Time and NTP settings Ping Watchdog
System Tools	System status: signal strength, noise strength, transmission CCQ, CPU usage, memory usage Status monitoring: Throughput/Wireless Client/Interface/ARP/Routing/WAN/DHCP Server Speed test Ping Traceroute
System Optimization	Hardware watchdog IGMP Snooping Optimization

Installation	Pole installation Bracket installation (bracket needs to be purchased separately, recommended purchase: TL-ZJ610)
wireless	Working frequency: 5.15~5.25GHz, 5.735~5.835GHz Wireless rate: 867Mbps Wireless standards: IEEE 802.11a/n/ac
Maximum transmit power	21.5dBm
Maximum wireless transmission distance (in an interference-free environment)	5 KM
port	1 10/100Mbps RJ45 port (LAN0/POE) 1 10/100Mbps RJ45 port (LAN1) 1 DC power jack port
Power supply	24V/0.25A Passive PoE power supply, power supply distance up to 100M
Indicator Lights	PWR, LAN0, LAN1, 4 signal strength indicators
antenna	Built-in 11dBi dual-polarized antenna
Antenna coverage angle	Horizontal direction: 30° Vertical: 33°
Product size	224x79x60(mm)
Usage Environment	Working temperature: -30°C~70°C Storage temperature: -40℃～70℃ Working humidity: 10%～90%RH non-condensing Storage humidity: 5%~90%RH non-condensing
Dustproof and waterproof grade	ASA engineering plastic housing, IP65 dustproof and waterproof
Whether to support wide voltage	110-240 VAC
Maximum power of the whole machine	4.654W (without power adapter) 5.61W (with power adapter)
